Have you ever wondered how complex metal parts, precise plastic pieces, or custom wooden designs are made so accurately? CNC milling likely played a part. This flexible manufacturing process supports modern precision machining. It’s used in many industries, including aerospace and healthcare. Let’s break down what CNC milling is, how it works, and why it matters.
Understanding CNC Milling

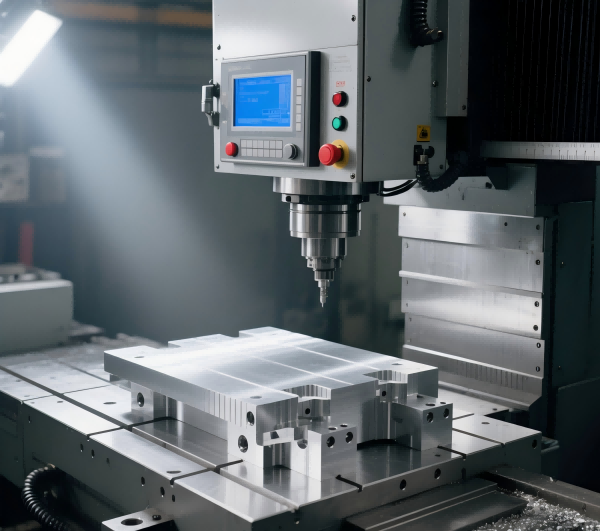

At its heart, CNC Milling (Computer Numerical Control Milling) is a subtractive manufacturing process. It makes parts by cutting material from a solid block, known as the “workpiece.” This process follows exact computer instructions. Think of it as a highly sophisticated, automated carving machine.
- CNC: The brain. A computer program (generated from CAD models via CAM software) controls the entire machine with extreme precision, dictating every movement, speed, and cut.
- Milling: The action. A rotating cutting tool with sharp teeth (the “milling cutter” or “end mill”) moves across the stationary workpiece, shearing away material to achieve the desired shape.
How Does CNC Milling Actually Work?
- Design (CAD): An engineer creates a detailed 3D model of the part using Computer-Aided Design (CAD) software.
- Programming (CAM): The CAD model is imported into Computer-Aided Manufacturing (CAM) software. Here, a programmer:
- Selects the right tools.
- Defines cutting paths (toolpaths).
- Sets speeds (how fast the tool spins – RPM) and feeds (how fast the tool moves through the material – IPM).
- Generates the machine-readable code (usually G-code).
- Setup: The operator:
- Securely clamps the workpiece (metal, plastic, etc.) onto the machine’s table.
- Loads the required cutting tools into the machine’s automatic tool changer (ATC).
- Loads the G-code program.
- Sets the workpiece origin (tells the machine where the part is located in space).
- Machining: The operator starts the cycle. The CNC machine then executes the program autonomously:
- The ATC selects and changes tools as needed.
- The spindle rotates the cutting tool at high speed.
- The table and/or spindle move along programmed axes, positioning the workpiece relative to the spinning tool.
- Material is precisely cut away layer by layer.
- Completion: The finished part is unloaded. It may need extra finishing like deburring, polishing, or anodizing. If not, it will go straight to inspection and use.
The Power of Axes: Understanding Movement
The number of axes a CNC mill can move along determines the complexity of parts it can produce in a single setup:
| Axis Configuration | Movement Description | Key Advantages | Typical Applications |
|---|---|---|---|
| 3-Axis | X (Left/Right), Y (Forward/Backward), Z (Up/Down) | Most common, cost-effective, excellent for prismatic parts (flat surfaces) | Brackets, plates, basic housings, molds with simple cavities |
| 4-Axis | X, Y, Z + Rotation around X-axis (A-axis) | Machining features on multiple sides without manual repositioning | Camshafts, complex contours, cylindrical parts, engraving |
| 5-Axis | X, Y, Z + Rotation around X-axis (A) + Rotation around Y-axis (B) or Z-axis (C) | Ultimate complexity; machine intricate shapes & undercuts in a single setup | Turbine blades, impellers, complex medical implants, aerospace structures |
| 3+2 Axis | 3 linear axes + 2 rotational axes, but rotation is positional (not simultaneous) | Allows complex angles without full 5-axis cost; good for multi-sided parts | Fixtures, parts requiring machining at compound angles |
Common Materials Used in CNC Milling
CNC milling is incredibly versatile and works with a wide range of materials:
| Material Type | Examples |
|---|---|
| Metals | Aluminum, Steel, Brass, Titanium |
| Plastics | ABS, Nylon, POM (Delrin), PTFE |
| Composites | Carbon fiber, G10 |
| Wood | Hardwood, softwood, MDF (less common in precision CNC) |
The choice of material depends on your project’s functional requirements, such as strength, weight, corrosion resistance, or thermal conductivity.
Where is CNC Milling Used? (Real-World Applications)
CNC milling is ubiquitous in modern manufacturing:
- Aerospace: Engine components, structural airframe parts, landing gear, turbine blades.
- Automotive: Engine blocks, transmission housings, suspension components, custom aftermarket parts.
- Medical: Surgical instruments, implants (knees, hips), diagnostic equipment housings.
- Electronics: Heat sinks, enclosures, connectors, semiconductor fixtures.
- Industrial Machinery: Gears, valves, pump housings, hydraulic components.
- Consumer Goods: Molds for plastic injection molding, die casting dies, high-end appliance parts, custom prototypes.
- Defense & Energy: Firearm components, radar housings, specialized valves, oil & gas exploration parts.
Benefits of CNC Milling
Why choose CNC milling for your project? Here are the top advantages:
- Precision: Achieves tolerances as tight as ±0.0005 inches, critical for high – performance parts.
- Consistency: Produces identical parts batch after batch, reducing errors.
- Versatility: Works with diverse materials and can create complex shapes (e.g., curved surfaces, slots).
- Efficiency: Faster than manual machining, even for intricate designs, saving time on large projects.
- Flexibility: Easy to adjust programs for design changes, making it ideal for prototyping.
CNC Milling vs. Manual Milling: A Quick Comparison
| Feature | CNC Milling | Manual Milling |
|---|---|---|
| Control | Computer Program (Automated) | Human Operator (Manual) |
| Precision | Very High (Micron level achievable) | Moderate (Highly skill-dependent) |
| Complexity | Handles highly complex 3D shapes | Limited to simpler geometries |
| Repeatability | Excellent (Identical parts) | Poor (Variation between parts) |
| Setup Time | Longer initial setup (programming) | Shorter initial setup |
| Production Speed | Very Fast (Once running) | Slow |
| Labor Cost | Lower per part (after setup) | Higher per part |
| Skill Required | High (Programming/Setup), Low (Run) | High (Skilled Machinist throughout) |
| Best For | Complex parts, prototypes, production | Simple one-offs, repairs, very low volume |
When Should You Choose CNC Milling?
Choose CNC milling if:
- Your part requires tight tolerances
- The material is too hard or difficult for 3D printing
- You need high surface finish
- You’re producing functional prototypes or end-use parts
- You want scalable, repeatable manufacturing
Choosing the Right CNC Milling Service
If you’re considering outsourcing CNC milling, here’s what to look for in a supplier:
- Experience with your material or industry
- Multi-axis capability (3-, 4-, or 5-axis machining)
- Tolerances and quality control processes
- Lead time and production capacity
- Communication and design support
The right partner should offer both technical guidance and consistent production quality.
CNC milling is not just a manufacturing process, but a solution for producing precise, consistent parts in almost every industry. Whether you need a single prototype or large-scale production, our CNC milling can provide you with reliable results.
